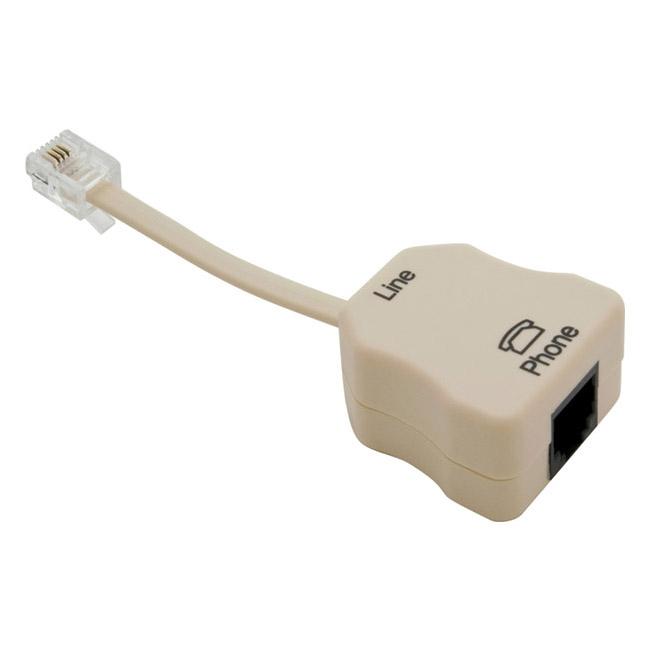

Suttle Single In Line Filter
900LCC-50
- Compatible with ADSL and ADSL2+
- Small compact design
- Simple to install
- Material is flame retardant thermoplastic compliant with UL 94V-0
- Filter topology: 2-pole low pass
- Contacts - Plug and Jacks - Minimum 50 micro-inch of gold and nickel
- FCC Registered; Complies with Part 68; ANSI T1. 421
- Dimensions: 3.8" L x .75" H x 1.25" W
- Color: IVORY
1 800 204 0555
Email Us
Visiting Us
The Suttle 900LCC-50 (1-Line) DSL Filter connects between the wall jack and voice device (e.g. phone, fax, answering machine, Caller ID) providing a single filtered jack for a single line of voice device communications.
Suttle In-line DSL filters eliminate all erratic impedance from telephone equipment that interfere with DSL communications.
- Dielectric Withstand: 1000 VDC for 1 minute
- REN: 0.1B (ac)
- Series DC Resistance: 20 ohms max. (T to R with telephone port shorted)
- Loading Capacity: 16nF (T to R)
- DC Loop Current: Operates from 0 - 90mA
- Off-Hook Insertion Loss: < 0.2dB @ 1KHz
- Off-Hook Insertion Loss Distortion: < 0.5dB (200Hz - 4KHz)
- Off-Hook Impedance Distortion: ERL > 9dB
- Off-Hook Impedance Distortion: SRL-LO > 13dB
- Off-Hook Impedance Distortion: SRL-HI > 3dB
- Envelope Delay: < 100 us (300Hz - 2.8kHz)
- Stopband Attenuation: ≥ 21dB @ 25kHz - 50kHz
- Stopband Attenuation: ≥ 25dB @ 50kHz - 30MHz
