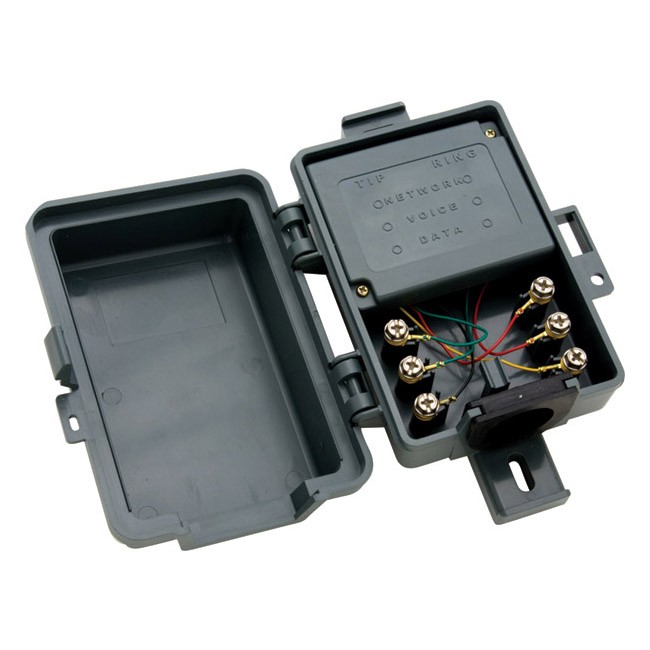

The Outdoor DSL POTS (Plain Old Telephone Service) Splitter allows voice and data signals to travel over the same telephone line and be separated at the customer premise. The 649A1 splits the incoming signal to provide separate outputs for filtered voice (phone) and ADSL (data) in the form of screw terminals. The Outdoor POTS Splitter is designed to be mounted on a wall or conduit next to a Network Interface Device (NID).

• DC Loop Current: 0 to 100 mA
• DC Loop Voltage (tip-to-ring): 0 to -60 VDC
• Ringing Signals 103 Vrms superimposed on the DC Loop Voltage: 20 to 30 Hz
• DC Resistance < 25 ohms, POTS tip-to-ring with Line port (U-R) shorted
• Insertion loss < 1.0 dB; short loop, ZTc = 900, ZTr = 600, 1004 Hz
• Insertion loss< 0.75 dB; long loop, ZTc = 900, ZTr = 600, 1004 Hz
• Attenuation Distortion (Voice Band) +1.5 to -1.5 dB; 200 - 3.4 kHz, short loop, ZTc = 900, ZTr = 600
• Increase Relative to Insertion Loss at 1004 Hz :+2.0 to -2.0 dB; 3.4 - 4.0 kHz, short loop, ZTc = 900, ZTr = 600
• Increase Relative to Insertion Loss at 1004 Hz :-0.5 to -1.5 dB; 200 - 3.4 kHz, long loop, ZTc = 900, ZTr = 600
• Increase Relative to Insertion Loss at 1004 Hz :+1.0 to -1.5 dB; 3.4 - 4.0 kHz, long loop, ZTc = 900, ZTr = 600
• Delay Distortion (Voice Band) Increase < 200 μs; 600 - 3.2 kHz, short loop, ZTc = 900, ZTr = 600
• Delay Distortion (Voice Band) Increase< 250 μs; 200 - 4.0 kHz, short loop, ZTc = 900, ZTr = 600
• Delay Distortion (Voice Band) Increase< 200 μs; 600 - 3.2 kHz, long loop, ZTc = 900, ZTr = 600
• Delay Distortion (Voice Band) Increase< 250 μs; 200 - 4.0 kHz, long loop, ZTc = 900, ZTr = 600
• Return Loss (Voice Band) > 6 dB ERL, > 5 dB SRL-L, > 3 dB SRL-H; short and long loop
• Longitudinal Balance, Two-Port Technique > 58 dB; 200 - 1.0 kHz
• POTS to Line Port (U-R) and Line Port (U-R) > straight line from 58 dB @ 1kHz to 53 dB @ 3.0 kHz,
• to POTS Bias 25 mA DC
• Tip to Ring Capacitance, POTS Port 20 < C < 115 nF; 20 - 30 Hz
• (Note: T1.413 Issue 2 requires < 90 nF, plans are to increase this
• in Issue 3 to < 115 nF)
• Capacitance to Ground, POTS Port < 1.0 nF; 20 - 30 Hz
• ADSL Band Attenuation > 65 dB; 30 - 300 kHz, ZTr = 600
• ADSL Band Attenuation > 55 dB; 300 - 1104 kHz, ZTr = 600
• Input Impedance < 0.25 dB; 30 - 1104 kHz, ZTr = 600
