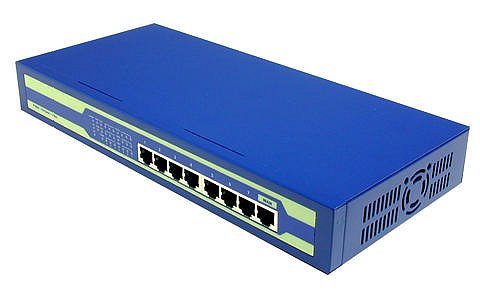

SOHO Router
Multi-function Broadband IP Sharing Device
- IP Sharer: It connects multiple users to Internet by sharing one xDSL/Cable External Modem and one ISP account.
- Print Server: It provides network printing function so that the LAN users can share the printer.
- System Environment: Microsoft Windows 95/98, Windows 2000, Apple MAC OS, Linux and Unix
- One year product warranty
| Port Characteristics | |
| WAN port | RJ-45 x 1 |
| WAN speed | 10Mbps (IEEE 802.3 10BaseT) |
| LAN port | SR-401E: RJ45 x 4, SR-801: RJ-45 x 7 |
| LAN speed | 10/100Mbps Dual-Speed
Switch
(IEEE 802.3/802.3u 10/100BaseT) |
| Printer port | 1 (female DB25) |
| COM port | RS232 (male DB9) x 1 |
| IP Sharer | |
| Dial-on-demand | YES |
| Auto-disconnect | YES |
| Max users | 253 |
| Print Server | |
| Platform support | Win95/98/NT, Unix LPR |
| Management | Web-based |
| Configuration and Management | |
| Web-based configuring | YES |
| Web-based management | YES |
| Win AP monitoring | YES |
| DMZ (DeMilitarized Zone) Host | YES |
| Remote Admin Host | YES |
| Features | |
| DHCP Server | YES (Support up to 253 IP address) |
| Virtual Server | YES (Virtual server mapping controllable) |
| Static IP | YES |
| Upgrade method | FTP or Windows AP |
| PPPoE | YES (Point to Point Protocol over Ethernet) |
| VPN Support | PPTP/IPSec |
| Firewall protection | Built-in NAT firewall (Natural packet filter and router with network address translation) |
| Popular Applications | Support Internet games, vidoe conferencing and telephone applications through user-definable triggers and imcoming ports |
| Firmware and Print Server Drivers | |
| Version of Firmware | 1.86, or 1.87, or 1.88 |
| Firmware Document | How to upgrade Firmware |
| Firmware Upgrades | Download the Version 1.92e |
| Latest Released Firmware | Download the latest Version 1.93s |
| Print Server Drivers | Windows 9X/ME driver Windows NT/2000 driver |
| Physical dimensions | |
| Size (SR-801E) | 300 x 142 x 40 mm3 (11.81 x 5.59 x 1.57 in3) |
| Weight (SR-801E) | 1.74 kg (3.83 lb.) |
| Environmental | |
| Operating temperature | 5 oC ~ 55 oC |
| Humidity | 10% ~ 90% |
| Power Input | AC 100~240V/ 50~60 Hz |
| Safety and Emissions | CE, FCC |
