| Now
you can experience a true plug-and-play Network device easier than ever.

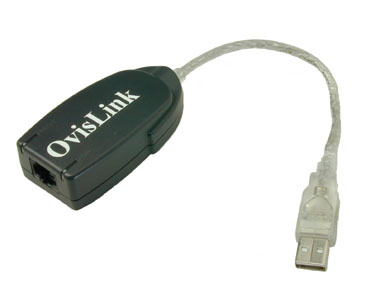

The USB (Universal Serial Bus) Network Adapter allows you to connect any
10Mbps, 100Mbps or 10Mbps/100Mbps network from a USB-enabled PC, notebook,
or USB HUB. With instant hardware recognition from Windows 98 and "Hot
Swap" feature from USB specification, you don't need to be a MIS specialist
to operate it. Just simply hook up the USB cable at one end and plug a
standard twist pair (RJ-45) network cable in the other end, and you will
be networked within no time!
FEATURES * 10/100M data rate auto-negotiation. * Feature full duplex mode that doubles the network connection speed. * High-power Bus-power no outside power is required. * Easy to read LED indicators. * Compact and robust design perfect solution for all network users, both desktop and mobile. * Compatible with Windows 98/ME/2000/XP. * Microsoft Plug-and-Play compatible. * Easy installation. Network Specification * IEEE 802.3 10BaseT and 802.3u 100BaseTX * Cat 3 / Cat 5 UTP, 100ohm STP cable up to 328ft/100M Host Interface * High-power Bus-powered from USB HOST or HUB, no external power needed * Full speed signal up to 12Mb/s ,upstream B type USB port * Suspend power saving mode supported Data Speed * 10/100 Mbps for Ethernet data transfer LED Indicator * Link status 10/100 Mbps Orange / Green * Activity (TX/RX) - Green Driver Support * Windwos 98 * Windwos ME * Windows 2000 * Windows XP |
|
![]() |
|
