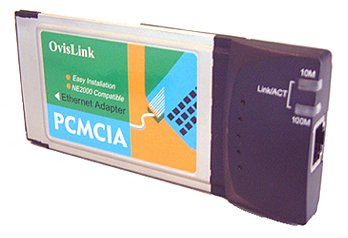

LES-PCM16DF
16-bit PCMCIA 10/100Mbps Fast Ethernet PC Card (Dongle-less)
Product Features/Specifications
                              The LFS-PCM-16D is a 16-bit PCMCIA 10/100Mbps NWay Fast Ethernet PC
                              Card for notebook computers. It allows users to easilyconnect a network and share
                              the databases and resources in diverse environments. It is engineered to unleash the power
                              of today's notebook and turn them into robust stations or servers.

                              With the dongle-less design, user can directly plug-in the RJ-45 LAN cable to the
                              LFS-PCM-16D without using the Media Coupler.

                             Full Duplex Support
                              Full/half duplex operation is auto-detected in both 10BASE-T and 100BASE-TX modes. In full
                              duplex, the notebook is connected to a switch on dedicated segment.

                             Snap-in Installation
                              The card auto detects IRQs and I/O addresses available in the notebook. Together with the
                              hot-swap support, this feature brings a lot of convenience to DOS and Windows users
                              without Win95/98 installed.

                             Complete Compatibility
                              The card is compatible with all major notebook, sub-notebook and palmtop PCs which
                              support the main Socket and Card Services, and provides driver programs for popular
                              networking operating systems.
      Features
    • Complies with the IEEE 802.3/802.3u/802.3ab N-Way auto-negotiation standard
    • 68-pin connector to PC's PCMCIA Type II slot
    • 10/100Mbps Dual-Speed NWay interface
    • Built-in 16KB RAM data buffers for LFS-PCM-16D
    • Built-in 32KB RAM data buffer for LFS-PCM-32D
    • Single shielded RJ-45 connector
    • Low power consumption
    • Auto-Polarity for UTP/STP cables
    • Hot Swappable
    • Supported driver list: Windows 95/98/ME/NT 4.0/2000, Netware 3.x/4.x/5.x,


                             Specifications

  • Standards:
    • - IEEE 802.3 10Base-T Ethernet
    • - IEEE 802.3u 100Base-TX Fast Ethernet
    • - ANSI/IEEE NWay Auto-Negotiation
    • - PCMCIA 2.x, 16-bit PC Card Standards
    • Protocol: CSMA/CD
  • Host Interface:
    • - LFS-PCM-16: 16-bit PCMCIA
  • Data Transfer Rate:
    • - Ethernet: 10Mbps (half-duplex)
        •        20Mbps (full-duplex)
    • - Fast Ethernet: 100Mbps (half-duplex)
          •     200Mbps (full-duplex)
  • Network Cables:
    • - 10Base-T: 2-pair UTP Cat. 3,4,5 EIA/TIA - 568 100-ohm STP
    • - 100Base-TX: 2-pair UTP Cat. 5 EIA/TIA - 568 100-ohm STP
  • Temperature: Operating - 0 ~ 50 degrees *C, Storage -10 ~ 70 degrees *C
  • Humidity: Operating - 10 ~ 90%, Storage - 5 ~ 90 degrees *C
  • EMI: FCC Class B, CE Mark B, VCCI-B
