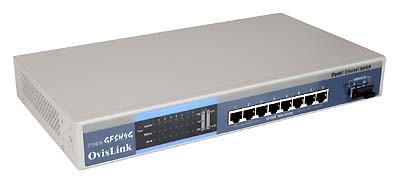

Ether-GFSH9G
Gigabit and 100/10Mbps Nway Fast Ethernet Switch


Technical Features / Specifications

  • Standard:IEEE 802.3 10BASE-T Ethernet

    •                 IEEE 802.3u 100BASE-TX Fast Ethernet standards
                    IEEE 802.3z Gigabit Ethernet
                    ANSI/IEEE 802.3 NWay auto-negotiation
  • Topology: Star
  • Protocol: CSMA/CD
  • Number of Ports:

    •                 8 x 10/100 NWay port, auto-sensing
                    1 x Gigabit Ethernet full duplex port
  • Transfer Rate:Ethernet - 10Mbps (half-duplex)          20Mbps (full-duplex)

    •                          Fast Ethernet - 100Mbps (half-duplex)   200Mbps (full-duplex)
                             Gigabit Ethernet - 1000Mbps (half-duplex) 2000Mbps (full-duplex)
  • Cabling:     10Base-T: 4-pair Cat. 3,4,5 UTP (100m)

    •                    100Base-TX: 4-pair Cat. 5 UTP or STP (100m)
                       Gigabit Ethernet: 62.5/50 micro multi-mode fiber (MMF)
                       cabling, SC connector

  • Transmission Method:    Store and forward
  • G. Link Capacity: Up to 2.4Gbps (1.2Gbps in full duplex)
  • RAM Buffer: 3MB per device
  • Filtering Address Table: 32K per device
  • Packet Filtering Rate: Wire speed for 10/100Mbps
  • MAC Address Learning: Automatic update
  • Active Flow Control: IEEE 802.3x compliant flow control for

    • full duplex, back-pressure option for half duplex
  • Extensive LED indicators for quick network diagnostics:

    • Power, link and activity, duplex and collision, speed
    (for 10/100Mbps segments) Packet rate (utilization status),
    Gigabit port status
  • Dimensions: 330 x 181 x 44 mm (L x W x H)
  • Power Input: 100 ~ 240 VAC, 50 ~ 60 Hz, 0.6A (internal power supply)
  • Power Consumption: 20W
  • Safety/EMI: FCC Class A, CE
