Capability Characteristics

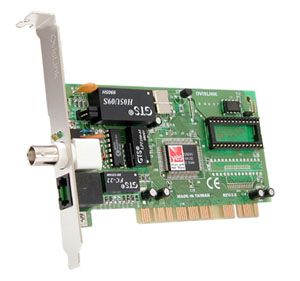

  The LE-8029R is a high-quality network adapter for 10Mbps-Networking systems. It supports the PCI bus
  and the connection to the network made by the RJ45-cable. Further it is Plug and Play device and offers
  Full /Half duplex, and flow control. That makes the installation as simple as only possible.

  Technical Data

•        Standard compatiable to the IEEE802.3
•        Supported 32-Bit PCI bus
•        Dual interface for BNC and Rj-45 autorecognition
•        16KB local Buffer MEMORY
•        Standard for Full duplex and flow control corresponds to the IEEE802.3x
•        Plug and Play autoconfiguration
•        Extensive driver support
•        Safety/EMI corresponds to the UL, FCC, CE and Korea EMI standard

Ordering Information

• LE-8029R 10Mbps PCI Network Adapter with BNC and RJ45 Connectors
• LE-8029RT 10Mbps PCI Network Adapter with RJ45 Connector only
