GSH8TW 8-Port Gigabit Switch

Ether-GSH8TW
8-port Pure Gigabit Web Management Switch

Feature Summary

8 x 10/100/1000Base-T ports
Dedicated Management Port
WEB and Console Management
Rate Control, TAG VLAN, Trunking, Priority, Port Mirror

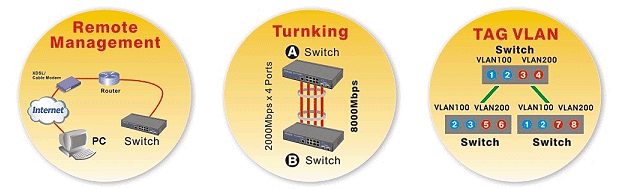

With the introduction of the Ether-GSH8TW, OvisLink has developed the perfect solution for Pure Gigabit switch with remote management capability at an affordable price. Remote Management
The Ether-GSH8TW features 8 Pure Gigabit Copper ports with auto MDI/MDI-X function to eliminate the need for cross-over cables. It can achieve Gigabit speed with Standard Cat. 5 cable. In addition to the 8 standard Gigabit ports; there is a dedicated 10/100Mbps Web management port that allow users to configure the switch through local LAN or over the Internet. The management port is not influenced by the VLAN configuration. If if you make a mistake in switch configuration that make the ports inaccessible. You can quickly change the setting through the management port.
Tag Based VLAN
Unlike ordinary web management switch that has only rudimentary port settings function. The Ether-GSH8TW equipped with some very useful and advance management features. Tag based VLAN allow administrators to configure VLAN groups across different switches. Private VID function is supported to allow switches to write tag information into the packet. So defining complex VLAN function across the entire network become much easier.
Rate Control, Trunking, Broadcast Storm filter
The date rate control allow to limit the speed of each port in 125 steps. The broadcast storm filter prevents one single station flood the network with broadcast packet. MAC based Trunking allow combining several ports to multiply the speed of one link. The priority allow certain port or packet to have more priority than others. The Static MAC address table function allow MIS to manually entering MAC address in a certain port. Finally port mirror is provided to allow MIS to sniff the packet of each ports for diagnostic purpose.
The Ether-GSH8TW is the most featured and cost effective web management switch on the market. Visit your OvisLink dealer today for details.
*Note: The switch use the management port for web management. To make the web management accessible inside the network, simply connect the management port to the regular port of the switch.

Specification

Hardware

8 x 10/100/1000Base-T Nway, auto-sensing ports
Auto MDI/MDI-X to eliminate needs for cross-over cabling
1 x 10/100Mbps RJ-45 management port
1M bit packet buffer
4K MAC entries and 4095 VLAN entries
LEDs: Power, Link/ACT, 10/100/1000Mbps
13" inch rack mountable

Standard Compliance

IEEE 802.3 10BaseT Ethernet
IEEE 802.3u 100BaseTX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet over Cat.5 cable
IEEE 802.3x flow control
IEEE 802.1p Priority Control
IEEE 802.1q Tag VLAN
IEEE 802.3ad Link Aggregation
Support jumbo frame, Max. packet length 9728 byte

Management Interface

Web
Ethernet Management Port

Power

Built-in Power Supply
Input: 90-260VAC, 50/60Hz
Consumption: 20 Watts max.

Regulation

FCC Part 15 Class A
CE mark, Class A

Management Functions

Flow control for both half- or full-duplex operation
broadcast storm filtering
Static MAC address Port: Lock a MAC address to a port.
Port Status

On/Off, Link, Auto Negotiation, Speed, Duplex, Flow Control, Priority

Port Traffic Statistics

Tx Good Packets, Rx Good Packets, Tx Bad Packets, Rx Bad Packets, Tx Abort, Collision, Drop Packets

VLAN

Port-based VLAN: 8 Groups
802.1Q tag- VLAN , PVID support

Support 802.1p 4-level priority queuing
Port-Trunking

MAC based Trunk with fail over
1 group with up to 8 ports

Port Mirror Function
Firmware update through web

Dimension

152mm (W) X 252mm (D) X 44mm (H)

Weight 1.3 KG

Ordering Information
Ether-GSH8TW Pure Gigabit 8-port WEB Management Switch
