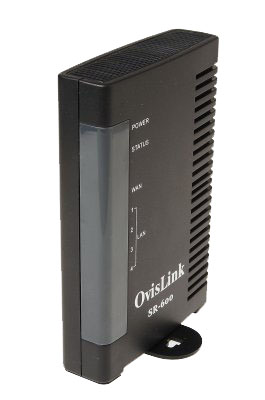

SR600
Broadband Cable/DSL Router
(1 x WAN and 4x LAN ports)


Feature Summary
  • high throughput up to 80Mbps between Internet and LAN
  • Support Auto MDI/MDIX for both LAN/WAN port
  • Support VPN. (PPTP, IPSec pass thru)
  • Dynamic DNS. (DDNS) and Proxy DNS
  • Allow to set 24 Virtual Server
  • DMZ host & Multi-DMZ
  • Rich Internet applications are supported
  • Natural firewall keeps hackers out  (NAT based)

User Manual  Download (5.75 M, pdf format)

The SR600 BroadBand Router is an integrated Internet IP sharing device with a built-in 4-port 10/100Mbps N-Way Fast Ethernet switch. Its superb throughput, as high as up to 80Mbps between Internet and LAN, makes it the perfect solution to connect a small group of PCs to a high-speed broadband Internet connection. With the SR600 multiple users can have high-speed Internet access simultaneously via one single IP address (Internet account) with a Cable/xDSL modem.

With NAT technology the SR600 also provides an Internet protecting for your network from being accessed by outside users. All incoming data packets are monitored and filtered. The Router can also be configured to filter internal users access to the Internet.

The built-in 4-port Fast Ethernet Switch lets users plug a network cable into the device without buying an additional Hub/Switch.

In addition, the unit is equipped with an Incoming Mail Indicator, which will light-up when there is e-mail waiting to be retrieved at the mail server.

    FEATURES
  • Superb performance with high throughput up to 80Mbps between Internet and LAN.
  • Web UI management.
  • Web Wizard simplifies user setup procedures.
  • Windows Wizard auto-detects ISP service for 1st time setup.
  • Support PPPoE.
  • Support PPTP client.
  • Support VPN. (PPTP, IPSec pass thru)
  • Support Auto MDI/MDIX for both LAN/WAN port.
  • Rich Internet applications are supported such as MSN, StarCraft, AOE, Battle.net multi-user, Crazy Arcade, NetMeeting, ICQ, VoIP phone, mIRC, Web browser, FTP, Telnet, E-Mail, News, Ping, PC-AnyWhere...
  • DHCP server allocates up to 253 client IP addresses.
  • Allow to set 32 Static DHCP.
  • Proxy DNS.
  • Dynamic DNS. (DDNS)
  • Allow to set 24 Virtual Server.
  • DMZ host & Multi-DMZ.
  • Allow to set 24 Packet Filters.
  • Static routing.
  • Super manager.
  • Allow firmware upgrade through network.
  • Support Windows 95/98/ME/NT/2000/XP, Unix, and Mac.
  • Natural firewall keeps hackers out.
  • Load/Save device settings from/to a PC file
SPECIFICATIONS
Standards
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3x Flow Control

Management
Web-Based configuration and management,
or GUI Setup program for Windows 98/ME/NT/2000/XP

Ports
WAN: One 10/100Mbps RJ-45 port for Cable/DSL Modem
LAN: Four 10/100Mbps switched ports

Cabling type: UTP Category 5 or better (100Base-TX)

LED indicators
Power Green for ON
Status Red for error
Internet Green for 100M/10M (flashing for activity)
Local (1-4 ) Green for 100M/10M (flashing for activity)

Input power   DC 9V 700mA
Physical Dimension 134 x 90 x 29 mm (W x D x H)3
Weight   175 g
Agency and Regulatory
FCC part 15 Class B, CE, VCCI, BSMI
Operating Temperature 0 oC to 50 oC
Operating Humidity 0-90% non-condensing
