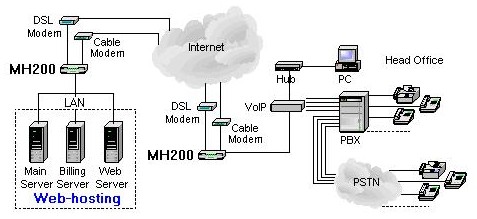

With the explosive growth of the Internet, having multiple points of connection to the Internet is now becoming an essential part of businesses network strategy. Multiple connections to the Internet, known as multi-homing, reduce the risk of a potentially catastrophic shutdown if one of the connections should fail.
In addition to maintaining a reliable connection, multi-homing allows a company to perform load-balancing by lowering the number of computers connecting to the Internet through any single connection. Distributing the load through multiple connections optimizes the performance and can significantly decrease wait times.

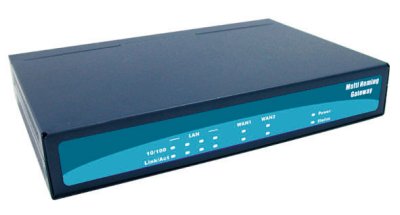

The MH200, designed for these goals, is a multi-homing Gateway router that provides an integrated solution with the following advanced features.

1. Real-time automatic backup: All WAN links backup each other automatically. Internet connection never fails. Should a WAN link break down, the MH200 detects this situation in real time, send email notification to MIS, and redirect subsequent traffic to remaining healthy WAN links. Likewise when a broken link comes back on line, the MH200 detects its presence instantly and start routing traffic back to it. Everything is automatic. Neither human involvement nor ISP reconfiguration is required. You can set the auto-switch time in the range of 1~99 seconds.

2. Load Balances Traffic Over 2 WAN Connections: To guarantee the quality of service (QoS) has become a basic requirement for many enterprises, for which can not afford the poor quality of the services degraded or even failed due to bandwidth misuse. Users can easily set up bandwidth policies based on their network configuration and company's policies. The MH200 can make sure that bandwidth need of anticipated traffic can be met and bandwidth consumption of unexpected traffic is monitored and controlled. Bandwidth policies of the MH200 can be specified based on RoundRobin, Weight Percentage, and Auto modes.

3. Cost-Effective: You can get rid of a T1 connection with only two two-way 512K ADSL. More economic and yet more secure.

4. Network Security Protection: Network Policy, Hacker Alert, Time Schedule, Access Control and Content Filtering.

5. VPN Gateway: Supports VPN (VPN Gateway for IP-Sec,PPTP Server/Client); DES/3DES, 200 Tunnels, and protocols like AutoKey IKE, MD5, SHA-1, etc.

6. The Multi Router Traffic Grapher (MRTG): Monitor the traffic load on network-links and generates HTML pages containing graphical images which provides a LIVE visual representation of this traffic.


SPECIFICATIONS

CPU	Risc Mips CPU at 100MHz
Memory	32MB SDRAM / 16MB Flash memory
Ethernet Standards	IEEE 802.3 10Base-T Ethernet  IEEE 802.3u 100Base-TX Fast Ethernet
Interfaces	IEEE 802.3x Flow Control
LAN Port	4 x 10/100Mbps RJ-45 switched ports (Auto MDI/X)
DHCP Server	Distribute IP up to 512
WAN Port	2 x 10/100Mbps RJ45 switched ports
WAN Port for ISP Services	Support xDSL/PPPoE/Cable/Leased Line servcie
WAN Port Service	Auto back up and load balance (by Session/Packet/IP/AP)  Alive indicator Site IP or URL
UTP type	UTP Category 3 or better (10Base-T)  UTP Category 5 or Better (100Base-TX)
Protocol	IP, NAT, ARP, ICMP, DHCP client/server, PPPoE, PPP, PAP, CHAP,  NTP, HTTP, TFTP, POP3
VPN Pass through	PPTP, IPSec
VPN Throughput	NAT mode = 25 Mbps  Authentication (No Encryption) = 3 Mbps  VPN Tunnels = 100  Connection Numbers =12,000
Management	Web-Based UI configuration and management
Application	Dynamic DNS, Muti-session PPPoE, Virtual server,   Special Internet application, Multiple virtual server (4),   Multi-server load balancing, Multi-DMZ host, MTU changeable for WAN,  Email alert when WAN link failure, Auto-reconnect,  Authentication with PAP and CHAP
Firewall Security	NAT/Transparent mode, Multipl NAT, URL Blocking, Content Filter, SPI,  Attack (DoS) detected item select, Attack (DoS) Alert,   Detect SYN/ICMP/UDP Flood, Detect port scan attack  Event alarm when attack detected
LED indicators	Power Green for okay  Status Green for okay  WAN-1 (10/100M, Link/ACT) Green for 100M/ Link okay (Link blinking for  activity)  WAN-2 (10/100M, Link/ACT) Green for 100M/ Link okay (Link blinking for  activity)
Power	DC 5V / 2.5A
Dimension	220 x 150 x 40 mm3 (W x D xH)
Regulation	FCC part 15 Class B, CE, BSMI
Humidity	5 ~ 95% non-condensing
