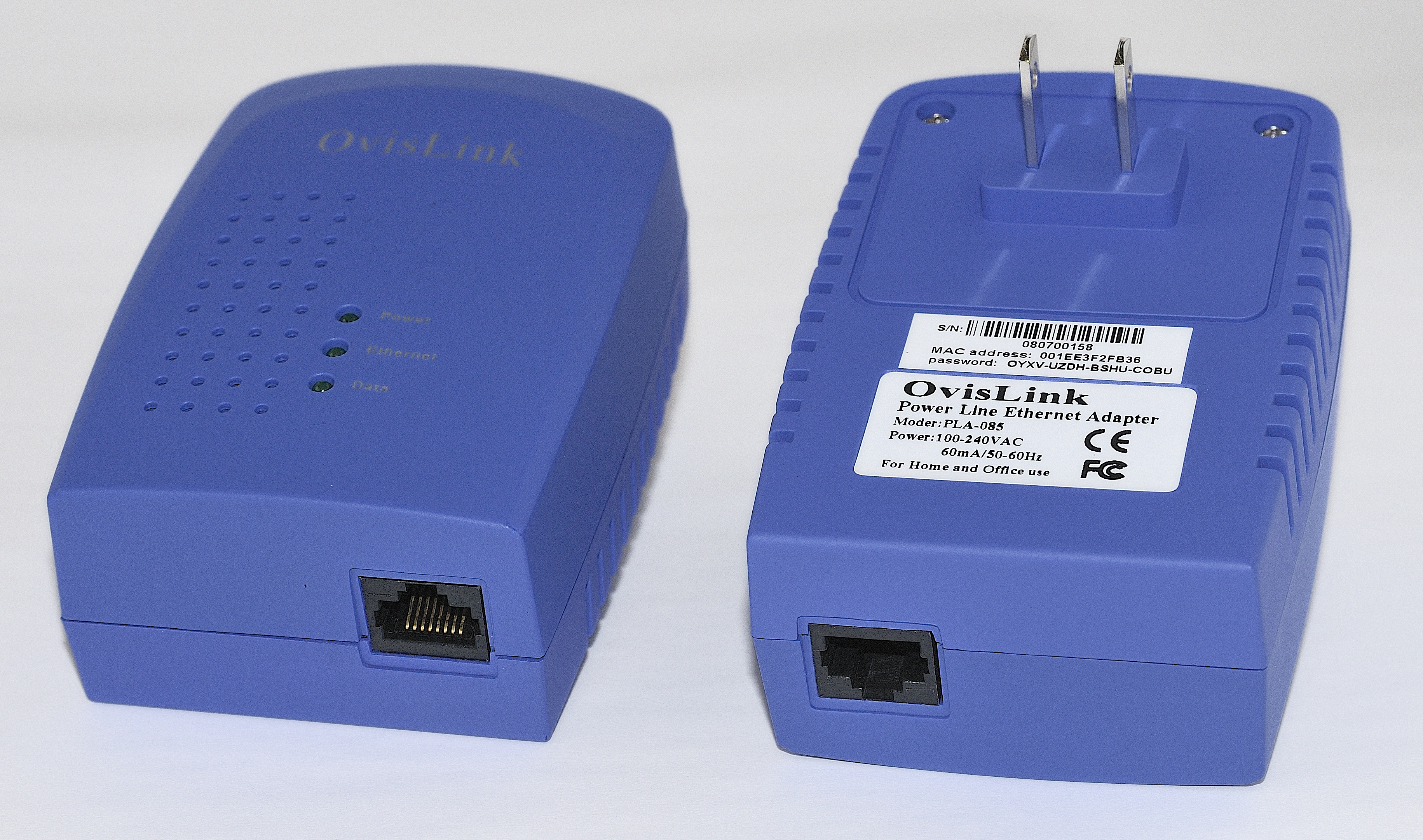

PLA-085E

85M PLC ADAPTER

FEATURES

Universal supply works over a power line voltage range of 85 to 265 VAC, 50~60Hz
Support QAM 256/64/16,DQPSK,DBPSK and ROBO modulation schemes
Up to 85 Mbps data rate on the power line
HomePlug Turbo 1.0 compatible
56-bit DES Link Encryption with key management for secure power line communications
Integrated Quality of Service (QoS) features such as prioritized random access, contention-free access, and segment bursting
Low power consumption



This adapter can provide the transmission of broadband data service via power line, which are suitable for use in a wide range of both residential (in-home) and commercial (offices, apartments, hotels, warehouses) network applications in which existing power lines can be utilized. There is never any need to install new wires. These adapters enable the effortless creation of a high-speed network that supports video, voice and data.

Applications
    Standard Video TV (SDTV)
    TV over IP (IPTV)
    High data rate broadband sharing
    Shared broadband internet access
    Audio and video streaming and transfer
    Voice over IP calls
    PC file and application sharing
    Printer and peripheral sharing
    Network and online gaming
    Security cameras

External Connectors

    1 Power jack

    1 10/100M Auto MDI/MDIX RJ45 port

Protocol Feature
    HomePlugTM Turbo1.0 compatible
