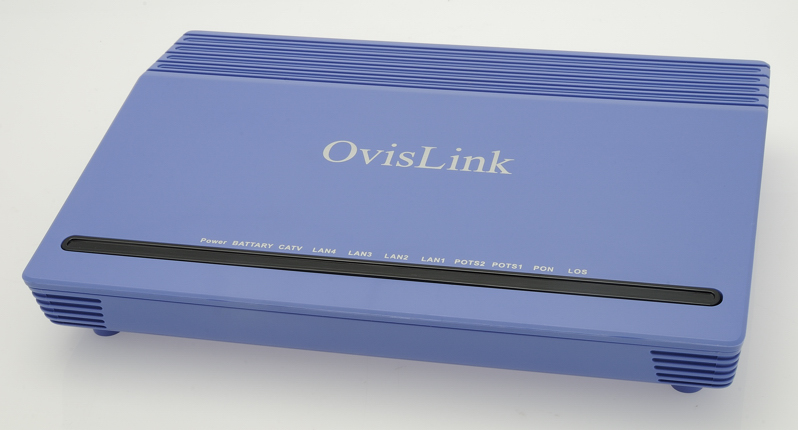

OV904GP

Introduction

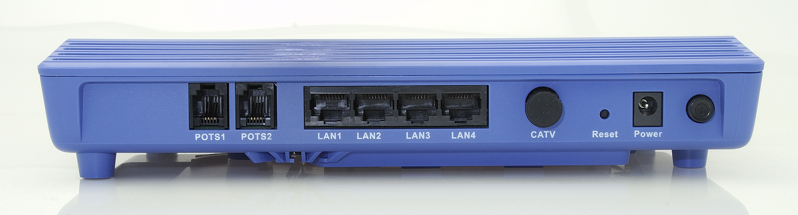

The OV904GP that is a GPON optical CPE (Customer Premises Equipment), can provides cost-effective broadband and VoIP services. It provides one GPON optical interface, four 10/100/Base-TX Ethernet interfaces, and two POTS interfaces. It is mainly applicable to FTTH (Fiber to the Home), such as buildings and communities.





OV904GP User Manual



Data Features

  1. Support ITU-T G.984.2, ITU-T G.984.3, and ITU-T G.984.4.
  2. Support FEC function.
  3. Support 128-bit AES encryption and upstream authentication.
  4. Support DBA function.
  5. Support built-in OAM, PLOAM, and OMCI.
  6. Support 32 T-CONTs.
  7. Support 256 bidirectional GEM interfaces.
  8. VLAN function: 4k 802.1Q VLANs. Support VLAN interface, VLAN pass-through, CVLAN, SVLAN and QinQ.
  9. QoS: SP, WRR, QoS priority classification based on 802.1Q priority, QoS priority classification based on protocol, QoS priority classification based on DiffServ, and QoS remark.
  10. Address management: 512 MAC addresses. Support 256 multicast addresses. MAC address aging precision is 1 second.
  11. Broadcast suppression.
  12. IGMP: Support IGMP Snooping mode controllable multicast mode (Filter). Support IGMP V1, V2, and V3. Support last member query (Snooping mode), Fast Leave, and multicast service management.
  13. Support IP address, DNS, and DHCP.
  14. Support double backup for remote software update.
  15. Support Watch Dog service.
  16. Support alarm and performance statistic.

 VoIP Features

  1. Support SIP
  2. Registration and authentication: call authentication, heartbeat, primary and secondary servers, and Outbound.
  3. Gain control, IP dialing rule. Support long number dial-up, and secondary dial-up.
  4. Voice CODEC negotiation: support G711U, G711A, G729a, G729b, G723.1_5.3, G723.1_6.3, G726-32, and G726-40.
  5. Call progress tone, echo cancellation, packet loss concealment (PLC), voice activity detection (VAD) and condensation, comfort noise, and packet time.
  6. Supplementary services: call forwarding, Do Not Disturb, anonymous calls rejection, call waiting, 3 way conference, call return, call transfer, hot-line, emergency call, caller line identity restriction, message waiting indication, interception service, outgoing call restriction, alarm-call service, abbreviated dialing.
  7. Fax service: T.38 fax, G.711 fax, and modem pass-through.



Application

  1. FTTH (Fiber to the Home)
  2. Higher data rate broadband transmission
  3. VoIP Service
