FEATURES

Main Features

• 800 DMIPS VIPER processor core

• 32 MB DDR SDRAM running at 133MHz main clock(DDR266)

• 8 MB Flash memory

• VDSL2 interface complied with G.993.2 (VDSL2), ANSI T1.413.

• Hardware ATM segmentation & reassembly engine with CBR, VBR, UBR and MCR shaping

• 4 10/100BASE-T/TX Ethernet Switch ports

• IEEE802.11 b/g compatible Wireless Access Point

• USB1.1 Device port

• USB2.0 Host port

• VoIP Integrated and support two FXS ports

Wireless Feature

• Compatible with IEEE 802.11g and IEEE 802.11b

• Support channels for many countries and regional. i.e. 13 Channels(Europe, China), 11 Channels(USA), 14Channels(Japan) etc

• Support auto channeling

• Support 64/128-bit WEP, 802.1x, WPA, and WPA2 for wireless security

• Support a main SSID and a guest SSID

• Support RTS/CTS, Segment function

• Support STA Mutual isolation

• Support SES

• Support WDS

• Support Hide SSID

• Support MAC Access/Deny List

• Support WMM

• Widely wireless signal rates. 54, 48, 36, 24, 18, 12, 9, 6 Mb/s for IEEE 802.11g; 11, 5.5, 2, 1 Mb/s for IEEE 802.11b

• Wireless Frequency Range, 2400 ~ 2484.5Mhz ISM Band

• Radio and Modulation Type: IEEE 802.11b: DQPSK, DBPSK, DSSS, and CCK ; IEEE 802.11g: BPSK, QPSK, 16QAM, 64QAM, OFDM

• Transmission distance: 100 meters Outdoors, 60 meters Indoors coverage area(Itdepends on environment.)

• Antenna : 5dBi

• Transmission power. 802.11b: Typ. 18 dBm @Normal Temp Range; 802.11g: Typ. 15 dBm @ Normal Temp Range

-  Specifications Download

- User Manual

VoIP Feature

• SIP (RFC3261 )

• Call Features
    Call Hold (Waiting)
    Call Transfer
    Conference Calling
    Call Forwarding
    Call Return
    Redial

• DSP Algorithms
    G.711 64 kbps
    G.723.1 5.3/6.3 kbps
    G.726 32 kbps
    G.729A 8 kbps
    G.168 Echo Cancellation
    ILBC 13.33/15.2kbps
    BroadVoice-16kbps
    T.38 Fax Relay

• DTMF Tone Detection
  Call Progress Tone Generation
  Call Progress Tone Detection
  DTMF-based CallerID Tx
  FSK-based Caller ID Tx
  FSK-based Caller ID Rx

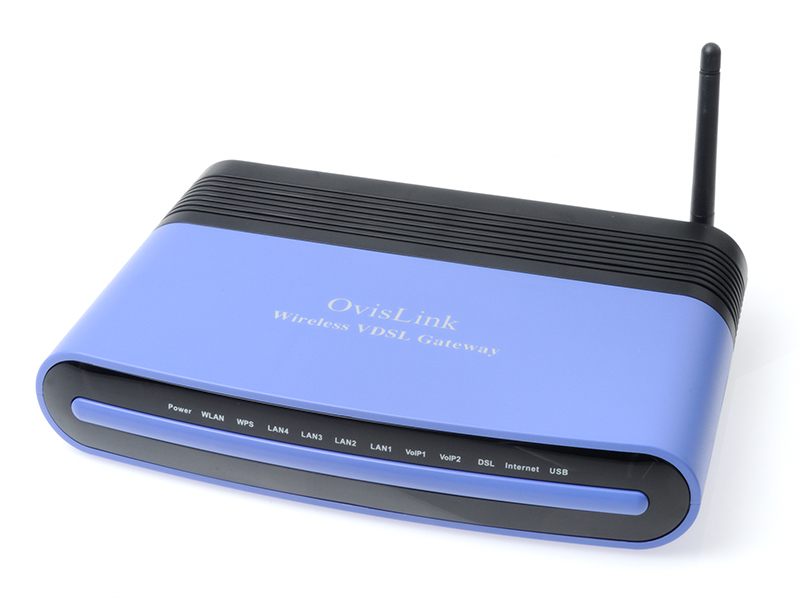

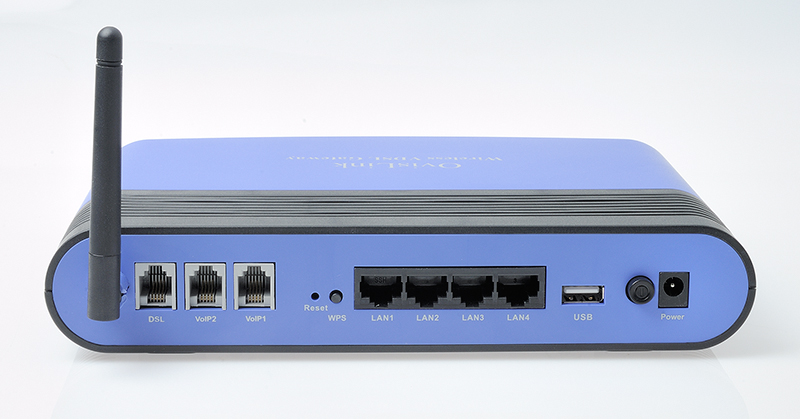

This is a Wireless VDSL2 router , which is an advanced all-in-one gateway incorporating a VDSL2 modem,
802.11b/g wireless router and VoIP Phone in one unit, bringing high-speed wireless Internet connection to home or office, It can provide transmission of broadband data service, which is suitable for using in a wide range of both residential and commercial network applications. This VDSL2 gateway is a very high-performance gateway with the built-in VDSL2 modem, and can support VDSL2 link downstream up to 79Mbps and upstream up to 40Mbps.Using 802.11g wireless technology, Wi-Fi enabled computers and other devices can wirelessly connect to it and share a single incoming Internet access. With four additional Ethernet LAN ports, you can connect your network Ethernet-enabled devices. You can also connect it to PC with an available USB cable. The router functionality includes support for VPN pass-through of multiple concurrent IPSec and PPTP tunnels. It also provides two FXS and one FXO ports for VoIP application, and offers a comprehensive line of VoIP access devices. It supports static IP, Dynamic IP, as well as PPPoE connections, and works with
applications such as online gaming and VPN connections with no additional configuration.


APPLICATIONS

Home gateway SOHO Applications The enterprise Application HDTV Standard Video TV (SDTV) IPTV and VoIP Shared broadband internet access Broadband internet accessing by wireless Audio and video streaming and transfer Support built-in IPSec VPN connection service USB storage

Ordering Information:

OV804WV
