Model

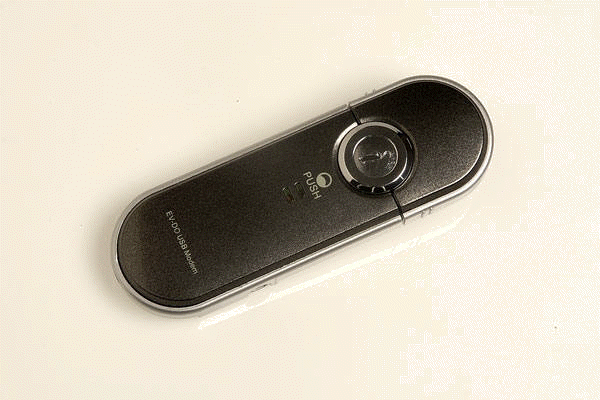

OV-850U

Radio Frequency

Band : 800MHz

          (RX : 869 ~ 894MHz TX : 824 ~ 849MHz)

RX Sensitivity : Nominal -106dBm

Dimensions

94×31×12mm(24.9g)

Environmental

Storage : -30 ~ +75℃

Operating : -20 ~ +50℃

Power Consumption

CDMA Max < 700mA

CDMA Typical < 250mA

Sleep < 2mA

Operation Voltage : 5.0 VDC

Data Options

Packet data, Async data, Two-way SMS, Quick

Net Connect

Data Rate

1X : Forward Link : Up to 153Kbps,

      Reverse Link : Up to 153Kbps

EVDO : Forward Link : Up to 2.4Mbps,

           Reverse Link : Up to 153Kbps

Hardware Interface

USB

Software Interface

S-707 AT command set and CMOTech extended

AT command set

IS-683A compliant over-air download/update

capabilities

O/S SUPPORT

Windows 2000, Windows XP
