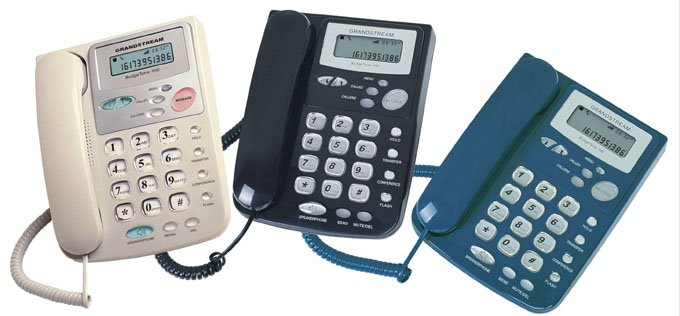

Product Overview

Budge Tone IP Phone is a next generation IP network telephone based on industry open standards. Built upon innovative technology, it features market leading superb sound quality and rich functionalities at ultra-affordable price.

Each IP phone has an unique ID. You can dial your partner's ID of the IP phone online at anywhere in the world as long as the IP phone is connected to the high speed Internet. The SIP server will automatically build up the point to point voice communications between both ends in seconds. Just pick up the phone set after the phone rings. You can be able to start the digital conversation with the other end as long as you want without spending a single penny. The IP Phone provides an additional value of the existing Internet service without any changes.

The IP phone is designed to pass through the NAT or firewall. So you don't need to configure anything in the router or gateway if the phone is behind the router. Just plug and play it. As simple as that. The phone has more features with current version or next versions.

Key Features

• Support SIP 2.0, TCP/UDP/IP, RTP/RTCP, HTTP, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP protocols
• Support NAT traversal using IETF STUN and symmetric RTP (compatible with Cisco’s ATA-186, etc)
• Support SIP SIMPLE standard for Instant Messaging and Presence (Model 102D)
• Interoperable with various 3rd party SIP end user device, Proxy/Registrar/Server, and gateway products (e.g., MS Messenger, Cisco IP phone and gateway, etc)
• Advanced Digital Signal Processing (DSP) to ensure superb hi-fidelity audio quality
• Advanced and patent pending adaptive jitter buffer control, packet delay and loss concealment technology
• Support most popular vocoders including G.711 (a-law and u-law), G.726, G.728, and wide-band G.722 (Model 102D) and more. Dynamic negotiation of codec and voice payload length
• Support standard voice features such as Caller ID Display or Block, Call Waiting, Hold, Transfer, Forward, FLASH, in-band and out-of-band DTMF (RFC2833), Dial Plans, off-hook auto dial, configurable emergency dialing (e.g., 911), early dial, click-to-dial
• Support 3-way conferencing (Model 102D), full duplex hands-free speakerphone, superior frequency domain acoustic echo cancellation (pending), redial, call log, volume control, voice mail with indicator, downloadable ring tone (pending)
• Support Silence Suppression, VAD (Voice Activity Detection), CNG (Comfort Noise Generation), Line Echo Cancellation (G.168), and AGC (Automatic Gain Control)
• Support DIGEST authentication and encryption using MD5 and MD5-sess.
• Provide easy configuration thru manual operation (phone keypad and Web interface) or personalized automated provisioning via central configuration file for mass deployment.
• Support for Layer 2 (802.1Q VLAN, 802.1p) and Layer 3 QoS (ToS, DiffServ, MPLS)
• NAT-friendly remote software upgrade capability (via tftp) even from behind firewalls/NATs.
• Built-in alarm-clock, music on hold and downloadable music ringing tone (Model 102D)
• Support for fail-over SIP server and DNS server (pending)

Hardware Specification

• Spec/Model  BudgeTone-100 Series
• LAN interface  1xRJ45 10Base-T
• Phone Case  25-button keypad 12-digit caller ID LCD
• Universal Switching Power Adaptor (UL certified)  In: 100-240V AC Out: +5V DC, 400mA
• Dimension  18cm (W) x 22cm (D) x 6.5cm (H)
• Weight  2 lbs (0.9 kg)
• Operating Temperature  32 - 104 oF (0 - 40 oC)
• Humidity  10%-95%
• Compliance  FCC/CE certified

Ordering Information

• BT100 - BudgeTone-101  One LAN interface port
• BT102 - BudgeTone-102  One LAN interface port, one PC interface port

This is a Preliminary Specification only and hence is subject to changes without notice
