Fast Ethernet Media
Converter:
10/100Base-T/TX to
100Base-FX Multi/Single-Mode: EL100
Series
100Base-TX to 100Base-FX Multi/Single-Mode: EL110
Series
|
 |
| Data Links |
|
|
| Other Related
Products |
|
| |
| Overview |
-
EL100/110 Series are
available in all types of fiber connectors and
modes
-
All have desktop kits,
wall mountable, and chassis mountable
-
1024 Mac address
| | |
General Information
|
 |

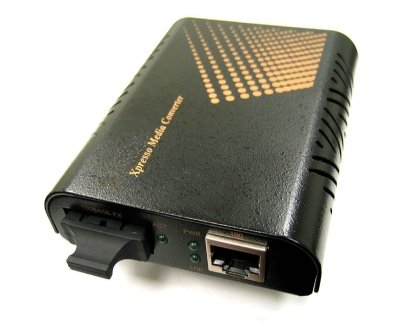

In response to the increase of fiber
optics cabling deployment, We offers its Media
Converter Series as a concrete and affordable answer.
The EL100/EL110 Series is one of the most
complete solutions in media conversion. EL100/110 Series
are available in all types of fiber connectors, and
modes: SC, ST, VF-45, and MT-RJ, also available in
single-mode of 15/40/75km.
EL100 and
EL110
Series EL110 is affordable and user
friendly. It supports several easy to read LEDs that
detect Link, Transmit/Receive, Full/Half Duplex status.
Alike EL110 series, EL100 is the most functional media
converter in the market. The RJ-45 port on this unit is
dual
speed, 10/100Mbps, auto sensing. Better than a
regular converter, EL100 has switch capabilities, it is
able to filter traffic and records MAC addresses. Both
of these series are available in all types of fiber
connectors, SC, ST, VF-45, and MT-RJ in either
multi-mode, or single-mode.
*All three series
have desktop kits, and they all are wall mountable, and
mountable in chassis.
|
Application Examples
|
|
Key Features
|
|
|
Key features providing multimedia
networking with space conservation
EL100:
- One-channel media
conversion between 10/100BaseTX and
100BaseFX
- Fiber media allows: MM
fiber using SC, ST, VF-45, MT-RJ or LC
connector; SM fiber using SC connector
- Auto-negotiation of speed
and duplex mode on TX port
- AUTO-MDIX on TX port
- One DIP switch for
configuring link-fault-pass-through, fixed
speed, and half/full duplex
EL110:
- Provides one port 100Base-TX with
RJ-45 connector and; one port Multi-Mode with
SC/ST/MT-RJ/VF-45 fiber connector or Single-Mode
SC fiber connector.
- LED
Indication:
PWR/(FX-LNK/TX/RX)/(TX-LNK/TX/RX/FDX/COL).
- One
push button for crossover cable or straight
cable for TX port.
- Compliant with IEEE 802.3u
100Base-TX, 100Base-FX standards.
Extended Single-Mode fiber optic
distance up to 75km (46.6ml).
1024 MAC
address.
Wall-mountable.
|
|
|
|
Meets a
variety of installation requirements
- Wall-mountable
- Front panel status LEDs
- External AC to DC power
adapter
- Use as a stand-alone device or with a
chassis
- Provide an 8-bay or 16-bay Chassis
with Redundant Power supply for optional
- Hot-swappable when used with a
chassis
|
Speed Fast
- Store-and-forward mechanism
- Non-blocking full wire-speed
forwarding rate
- Support broadcast storm
filtering
- Back-pressure & IEEE802.3x
complaint flow control
- EL100 and EL110 Series with full and
half duplex operation
| |
Technical
Specifications
|
|
|
LED:
EL100: Per Unit - Power
status, 100 (2 LEDs)
Per Port - LNK/ACT, FDX/COL (2
LEDs)
EL110: Per Unit - Power status (1 LED)
Per
Port - [FX] LNK/TX, RX (2 LEDs)
[TX] LNK/TX, RX,
FDX/COL (3 LEDs)
Ethernet Standards:
EL100: IEEE
802.3 10Base-T,
IEEE 802.3u 100Base-TX,
100Base-FX
EL110: IEEE 802.3u 100Base-TX,
100Base-FX
Cable:
10Base-T 2-pair UTP
Cat. 3, 4, 5, up to 100m (328ft)
100Base-TX 2-pair
UTP Cat. 5, up to 100m (328ft)
100Base-FX 62.5/125um
Multi-mode fiber optic cable, up to 2km
10/125um
Single-mode fiber optic cable, up to 75km
Forwarding
Rate:
14,880pps for 10Mbps; 148,800pps for
100Mbps
|
Physical
Specifications
|
|
|
Environmental
Operating
Temperature: 0º - 50º C (32º - 122º F)
Storage
Temperature: -25º - 70º C (-13º -158º F)
Humidity: 10 - 90%
(non-condensing)
Power:
External AC/DC required, 12VDC,
0.8A universal power supply. Power consumption:
10W max.
Dimensions: W80.3mm x
D109.2mm XH23.8mm
Emission
Compliance: FCC part
15 Class A, CE Mark, VCCI Class A
Net
weight: 0.15kg
(3.4lb)
|
|
Ordering Information
|
|
|
Part No.
|
Port
One |
Port
Two |
|
Connector
Type |
Speed
|
Distance
|
Connector
Type |
Speed
|
Distance
|
|
EL100 Series
|
|
|
|
|
|
|
|
EL100C
|
RJ45
|
10/100mbps
|
100m
|
SC Multi
Mode |
100mbps
|
2km
|
|
EL100C-20
|
RJ45
|
10/100mbps
|
100m
|
SC Single
Mode |
100mbps
|
20km
|
|
EL100C-40
|
RJ45
|
10/100mbps
|
100m
|
SC Single
Mode |
100mbps
|
40km
|
|
EL100C-75
|
RJ45
|
10/100mbps
|
100m
|
SC Single
Mode |
100mbps
|
75km
|
|
EL100T
|
RJ45
|
10/100mbps
|
100m
|
ST Multi
Mode |
100mbps
|
2km
|
|
EL100M
|
RJ45
|
10/100mbps
|
100m
|
MT-RJ Multi
Mode |
100mbps
|
2km
|
|
EL100V
|
RJ45
|
10/100mbps
|
100m
|
VF-45 Multi
Mode |
100mbps
|
2km
|
|
EL110 Series |
|
|
|
|
|
|
|
EL110C
|
RJ45 |
100mbps
|
100m
|
SC Multi
Mode |
100mbps
|
2km
|
|
EL110T
|
RJ45 |
100mbps
|
100m
|
ST Multi
Mode |
100mbps
|
2km
|
|
EL110M
|
RJ45
|
100mbps
|
100m
|
SC Multi
Mode |
100mbps
|
2km
|
|
EL110V
|
RJ45
|
100mbps
|
100m
|
VF-45 Multi
Mode |
100mbps
|
2km
|
|
EL110C-15
|
RJ45
|
100mbps
|
100m
|
SC Single
Mode |
100mbps
|
15km
|
|
EL110C-40 |
RJ45
|
100mbps
|
100m
|
SC Single
Mode |
100mbps
|
40km
|
|
EL110C-75 |
RJ45
|
100mbps
|
100m
|
SC Single
Mode |
100mbps
|
75km
| |
| |
